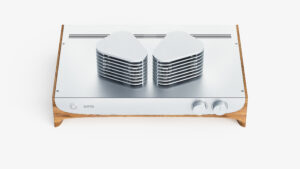

There is more to the DIMD PP10 than meets the eye. From highest grade components to a point-to-point construction, the PP10 integrated amplifier is built to reproduce music in the finest way.

POINT-TO-POINT CONSTRUCTION

DIMD PP10 Stereo is expertly crafted and engineered to the highest standards. By using precision point-to-point hand wiring, we’re able to build a product with the shortest signal and ground return paths. So you have an amplifier with an extremely low noise level.

The PP10 integrated amplifier uses push-pull circuit topology and operates in class AB. With excellent harmonic and inter-modular distortion figures, PP10 Stereo is the perfect centerpiece for your audio system.

HIGH GRADE COMPONENTS

The idea behind PP10 has never wavered – to craft a precision electronic instrument. To achieve this, only the very best high-performance components are used. Self-healing polypropylene coupling capacitators, paired with point-to-point hand wiring, ensure incredibly low total harmonic distortion. So every musical instrument in your recording will not only make its presence felt, but sound even truer to life. Moreover, for DIMD PP10, we use only high tolerance metal film resistors. So you get low noise level and all the benefits of a precisely balanced stereo amplifier.

PRECISELY ADJUSTED

Engineered around point-to-point construction with high grade components, the DIMD PP10 would exhibit remarkable properties even with no overall negative feedback at all. Therefore, by applying delicate feedback of just 6 dB, all the main parameters of the tube amplifier appear precisely adjusted. The result? A well-balanced frequency response, even lower THD and an optimal damping factor.

MATCHED TUBES

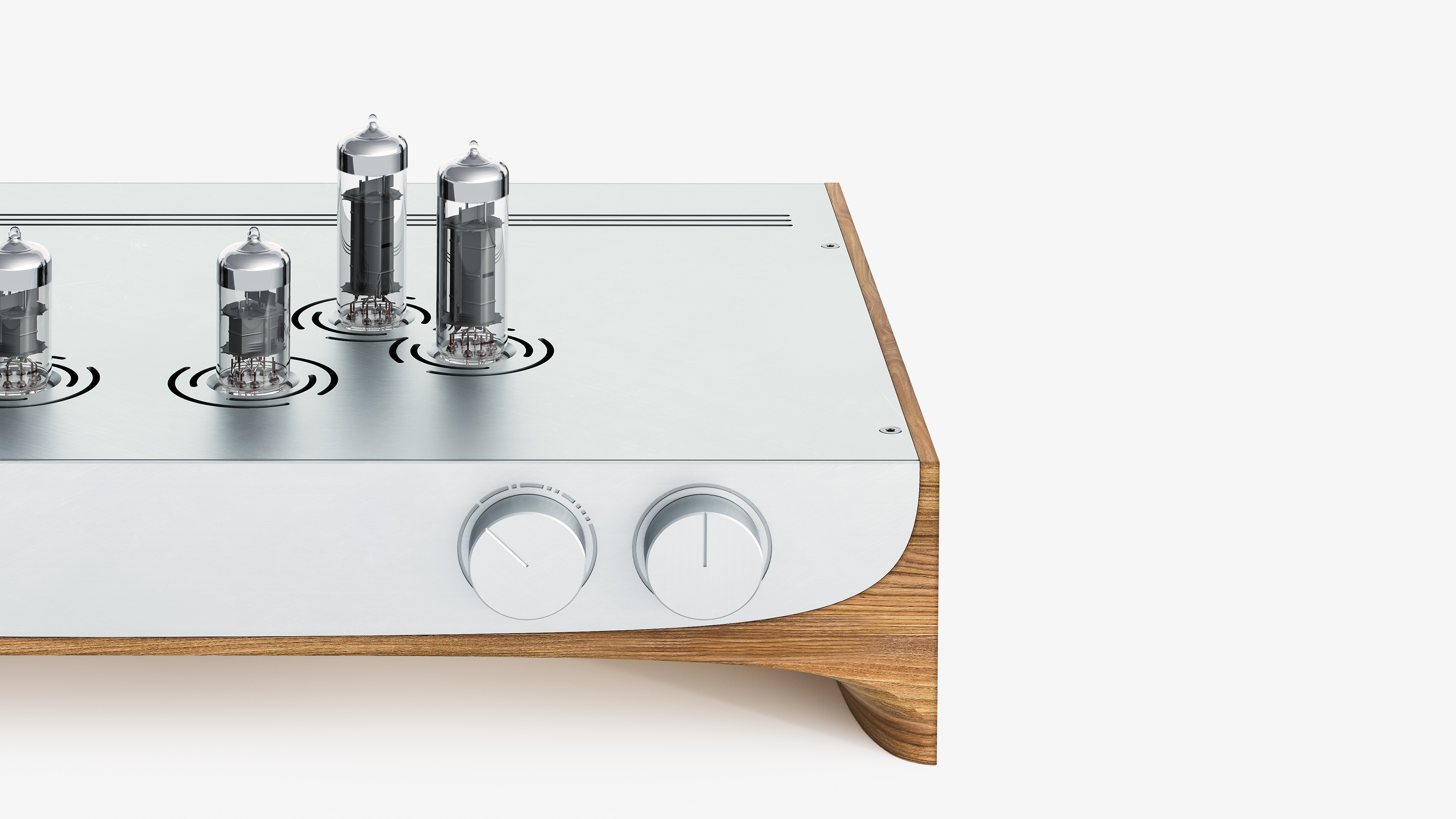

Clarity. Accuracy. Purity. You name it. Regardless of how you measure the quality of sound, tubes matter. In the PP10, we use only a matched pair of the well-known ECC83 double triodes in preamp, and a matched quartet of EL84 pentodes in the power stage. So each pair and quartet are matched especially for the DIMD PP10. This ensures that nothing gets between you and your favorite music.

SPECIFICATIONS:

Operating class: AB
Output topology Push-Pull, UL
Output tubes 4 x EL84
Driver tubes 2 x ECC83
Nominal speaker impedance 6 or 8 Ohm
Maximum power 2 x 10 W
Inputs 4 RCA pairs
Input sensitivity 420 mV
THD @ 1W (1kHz) < 0.1 %
THD @ 10W (1kHz) < 0.3 %
